Model

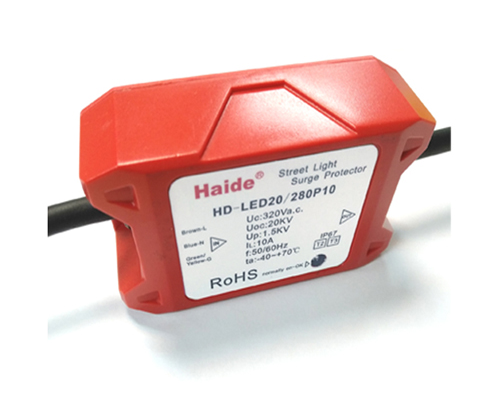

HD-LED20/280P10

IEC61643-11

Ⅱ/T2/C、Ⅲ/T3/C

Nominal working voltage Un

220 Vac

Maximum continuous working voltage Uc

320 Vac

Open-circuit voltage

20 KV

Nominal discharge current In （8/20μs）

10 KA

Maximum discharging current  Imax（8/20μs）

20 KA

Voltage protection level Up(L-N)

1.5 KV

Rated working current

10 A

Value of overvoltage broken-circuit

280 Vac

Protection grade

IP 67

Mode of connection

Connection in series

Fault alarm

LED indication lamp（Optional）

Sheathing material

Fire-proof retardant plastic

External dimension

96 x 53 x 30 mm
