The first generation of intelligent wireless monitoring module

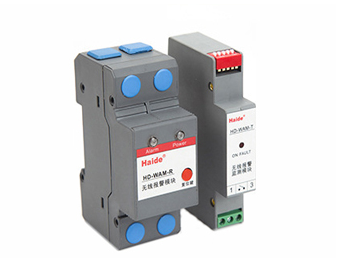

HD-WAM series product is a device that is mainly used to provide sound and indicator alarms when a lightning arrester with a remote alarm function fails.It adopts wireless transmission method,which consists of wireless alarm monitoring module HD-WAM-T and wireless alarm module HD-WAM-R. HD-WAM-T is a companion device for monitoring the status of remote signaling of a group of (four) surge protectors. It uses a voltage detection method to obtain surge protection remote signaling and identify good and bad. When any of the protectors fails, the voltage check circuit will trigger off and send an indicator alarm, and also send the alarm signal wirelessly. HD-WAM-R is a remote receiving device compatible with HD-WAM-T. Once it receives a valid alarm signal, it will send an audible and visual alarm.

Model	HD-WAM-T	HD-WAM-R
Rated working voltage Un	Built-in battery	AC 220V
Alarm method	Indicator alarm	Sound and light alarm

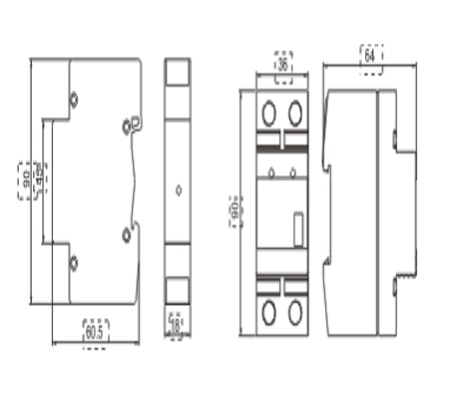

Module Dimensions	9060.518mm	906436mm
Installation method	35mm Electric guideway
Receiving distance	≤350m（Sunny ， empty）
Enclosure protection degree	IP20
Working temperature range	-40℃ ～ +70℃
Operating humidity range	≤95%
Switching signal	Normal open

1. Alarm signal wireless transmission

2. A detection module can receive alarm signals from multiple monitoring modules;

3. An alarm module can receive alarm signals from multiple monitoring modules;

4. The passive design of the monitoring module requires no external power supply and it is valid for five years;

5. Standard 35mm guideway, small volume,easy installation and maintenance,it is unconditionally compatible with the monitored product as long as there is a switch signal output.
