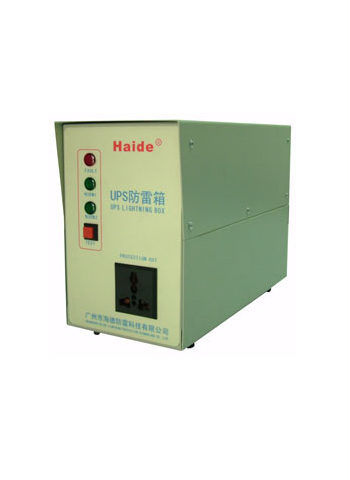

Dedicated lightning protection box for compotator UPS
This
product is applicable to lightning and electric surge protection of
lightning protection area LPZ1 or LPZ2 to LPZ3 area (Grade D or Grade Ⅲ),
as well as single-phase and three-phase supply circuit. Vital
components of this product adopt the advanced high capacity surge
absorber member MOV，and
have passed the burn-in screen with even quality and quick response
time. Product connection in series is superior to that of parallel
connection in protective property. It has even lower limit to output
voltage and can protect the equipment effectively. With LC filter
circuit and current limiting device, its protection grade can reach
IP30. This kind of product is of complete function, convenient
installation, and the function of operating light as well as fault
detection.
|
Model
|
HD-BUPS8/10
|
HD-BUPS6/7
|
HD-BUPS6/5
|
HD-CUPS4/4
|
HD-CUPS2/2
|
|
Nominal working voltage Un
|
220V
|
220V
|
220V
|
220V
|
220V
|
|
Maximum continuous working voltage Uc
|
275V
|
275V
|
275V
|
275V
|
275V
|
|
Nominal
discharge current In（8/20ms）
|
40KA
|
30KA
|
30KA
|
20KA
|
10KA
|
|
Maximum
discharging current Imax（8/20ms）
|
80KA
|
60KA
|
60KA
|
40KA
|
20KA
|
|
Voltage protection level Up
|
2.4KV
|
1.6KV
|
1.6KV
|
1.2KV
|
0.8KV
|
|
Prepositive overflowing
protection
|
63A
|
63A
|
32A
|
32A
|
32A
|
|
Power
|
10KW
|
7KW
|
5KW
|
4KW
|
2KW
|
|

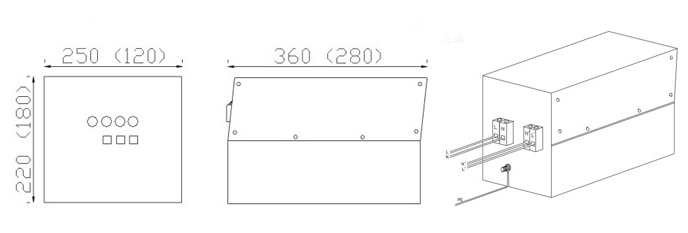

External dimension
|
360×250×230mm
|
|
Response time Ta
|
≤25ns
|
|
Operating temperature range Tup
|
-40℃至+70℃
|
|
Working order indication
|
Green light means normal working, red light
is fault indication.
|
|
Section of minimum installed conductor
|
6mm2 Multi-folded wire
|
|
Sheathing material
|
Metal Spraying
|
|
Mode of connection
|
Connection in series
|
|
Protection mode
|
Overall protection
|
Installation Method: Ground the null line repeatedly when long-distance overhead incoming feeder is connected to the building. L
and N are terminal for power incoming feeder; L ' and N ' are terminal
for lead-in equipment, which is installed at the leading end of DPS
incoming feeder. It's suggested power earthing (PE) be well connected
with lightning protection ground lead (suggested earth resistance ≤4Ω).Suggested specification of the lead wire: no less than 10m2, short and straight.
