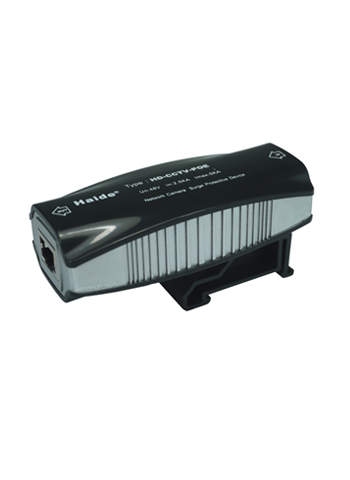

POE network video surge protector

This product can respectively carry out surge protection of the power supply and video lines of a camera,the enclosure adopts an shielding plastic structure.This product has a small volume and very low output residual voltage.Its design is fully considered that the attenuation of data signal transmission between the device inter-electrode capacitance and distributed capacitance. It also has low insertion loss and the data transmission rate can up to 100Mbit/s that can fully meet the video signal transmission requirements and has the advantage of quick response to transient overvoltage.

Model	HD-CCTV-POE/A
Based on IEC61643-11/IEC61643-21，SPD	III/T3	C2/D1
Protective line	Power line	Network line
Nominal working voltage Un	48V	48V
Maximum continuous working voltage Uc	60V	60V
Nominal discharge current In （8/20μs）	2.5KA	2.5KA
Maximum discharging current Imax（8/20μs）	5KA	5KA
Voltage protection level Up	200V	150V
Rated load current IL	1A
Drain current	＜5μA
Response time Ta	＜25ns	＜1ns
Insertion loss		≤0.2dB
Insertion resistance		1Ω
Bandwidth FG		100M
Protection grade	IP30

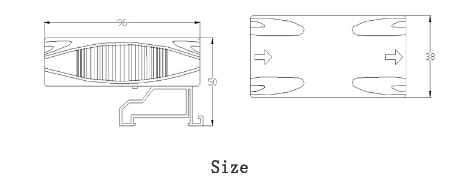

External dimension	965038mm
Sheathing material	Shielding plastic fire-proof material
Operating temperature range Tup	-40℃to+70℃
Interface mode	RJ45
Number of guard wire	45，78 wire或1,2,3,6 wire		1,2,3,6 wire
Fixed way	Guide

Installation method：

Put an arrester in series at the leading end of the interface of lines of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω).
